COMPACTION EQUIPMENT

ROLLER,VIBRATORY 3TON DUAL DRUM

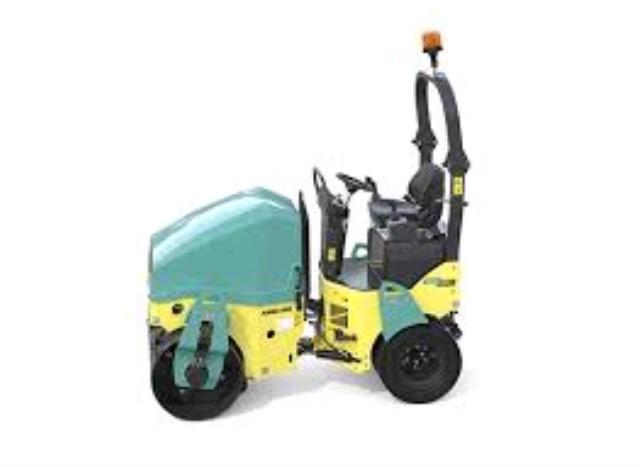

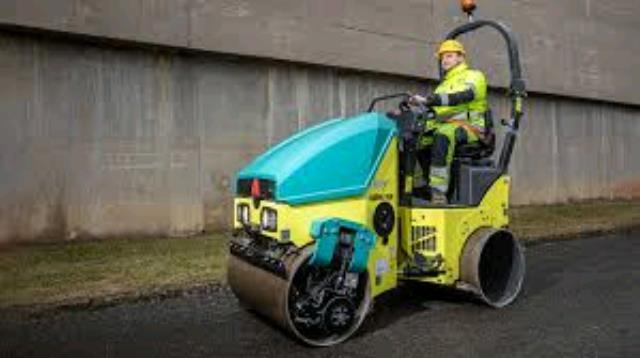

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: AMMANN

Model: ARX 26.1-2

Daily: $425.00

Weekly: $1,250.00

Quantity: for a period of
day(s) week(s)

Additional Information

ENGINE SPEED 2100 / 2400 rpm
POWER OUTPUT ISO 3046 18,5 kW / 24,8 HP
EMISSION STAGE EU Stage V / U.S. EPA Tier 4 Final
For additional product information and services please visit: www.ammann.com
Materials and specification data are subject to change without notice.
MSS-2738-02-EN | Ammann Group
COMPACTION FORCES
AMPLITUDE I 0,5 mm (0.020 in)
AMPLITUDE II 0,5 mm (0.020 in)
FREQUENCY I 58 Hz (3,480 vpm)
FREQUENCY II 66 Hz (3,960 vpm)
CENTRIFUGAL FORCE I 34 kN (7,644 lbf)
CENTRIFUGAL FORCE II 41 kN (9,217 lbf)
WEIGHT & OPERATING CHARACTERISTICS
OPERATING WEIGHT CECE 2 460 kg (5,423 lb)
OPERATING WEIGHT MAX. 2 655 kg (5,853 lb)
STATIC LINEAR LOAD AVG. 10,25 kg/cm (57.4 lb/in)
MAX. WORKING SPEED 10 km/h (6.2 MPH)
GRADEABILITY WITHOUT VIBRATION 30%
GRADEABILITY WITH VIBRATION 25%
TURNING RADIUS (INNER) 2 400 mm (94.5 in)
DRUM OFFSET 40 mm (1.6 in)
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING Multiple-disc spring brake
BRAKES EMERGENCY Multiple-disc spring brake
FUEL TANK CAPACITY 35 l (9.2 gal)
WATER TANK CAPACITY 190 l (50.2 gal)
TYPE OF WATERING Pressure
HYDRAULIC TANK CAPACITY 28,5 l (7.5 gal)
STEERING ANGLE 30
OSCILLATION ANGLE 6,5
BATTERY VOLTAGE 12V
BATTERY CAPACITY 77 Ah
MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS
AT OPTIMAL WORKING CONDITIONS
ROCKFILL N/A
SAND / GRAVEL 250 mm (9.8 in)
MIXED SOILS 180 mm (7.1 in)
SILT N/A
CLAY N/A
STABILISATION 120 mm (4.7 in)
ASPHALT 100 mm (3.9 in
